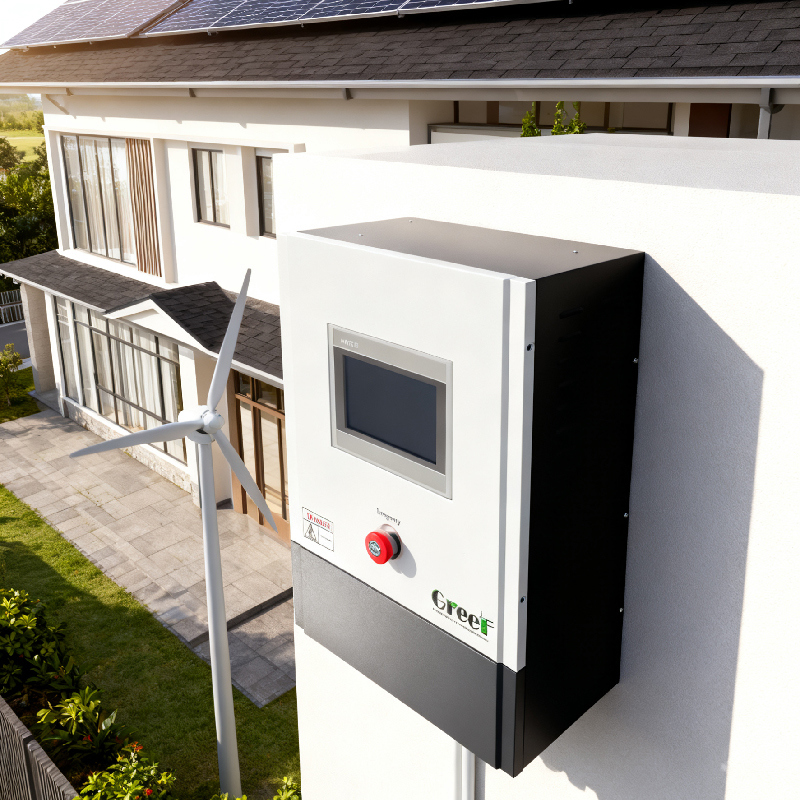

Name: On Grid Controller with IP65 Outdoor Protection, Double Safety Control Systems, and Three-Phase Dump Load Brake System
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: GT-PCTC Series Controller
Price: 1,730.00 USD
Availability: InStock

Evde > Ürünler > Şebeke Kontrolöründe >

On Grid Controller with IP65 Outdoor Protection, Double Safety Control Systems, and Three-Phase Dump Load Brake System

IP65 Outdoor Protection On Grid Controller

Double Safety Control Systems Grid-Tied Controller

Three-Phase Dump Load Brake System Wind Turbine Controller

Marka adı:

Greef

Sertifika:

Model Number:

GT-PCTC Series Controller

Bizimle İletişim

Bir İndirim İste

Ürün Ayrıntıları

Koruma derecesi:

IP20(İç Mekan) IP65 (Dış Mekan)

Çıktı frekansı:

50Hz/60Hz

Rüzgar türbini anma gerilimi:

AC220V-600V

PWM sabit voltajı:

≥400dc, ≥700dc

Ürün Tipi:

Aşırı gerilim koruması, Şebeke kesintisi koruması, Düzenlenmiş besleme çıkışı, Parafudr

Soğutma Yöntemi:

Doğal konveksiyon

İşlev:

Doğrultucu, kontrol, DC çıkışı

İletişim Arayüzü (isteğe bağlı):

RS485/USB/GPRS/WİFİ/Ethernet

Ödeme ve Gönderim Koşulları

Minimum Order Quantity

1Set

Fiyat

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Ödeme koşulları

T/T, Western Union, MoneyGram, L/C

Supply Ability

İLGİLİ ÜRÜNLER

video

Efficient On Grid Controller with IP20/IP65 Protection 99.9% MPPT Efficiency and AC220V-600V Rated Voltage

En İyi Fiyatı Alın

video

Advanced Technology Wind Controller with DC Output and Grid Monitoring for On Grid Systems

En İyi Fiyatı Alın

video

Ethernet Communication Interface On Grid Controller with AC220V-600V Rated Voltage and Natural Convection Cooling

En İyi Fiyatı Alın

video

On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

Grid-Tied Power Curve Controller with 99.9% MPPT Efficiency

The GT-PCTC series grid-tied controller is a critical component for wind generator on-grid systems, converting three-phase AC current from wind turbines into DC current for transmission to grid-tie inverters. This advanced controller features dual safety systems and seamless integration with leading solar inverters.

Key Features

PWM constant voltage system (≥700V DC capability)
Three-phase dump load brake system
99.9% MPPT efficiency for optimal power conversion
Compatible with Growatt, Deye, Solis, and Ivet solar inverters
LCD touch screen display with comprehensive monitoring
Double safety control systems for reliable operation

Technical Specifications

Parameter	GT-PCTC-1.5KW	GT-PCTC-2KW	GT-PCTC-3KW	GT-PCTC-5KW
Wind turbine rated power	1.5KW	2KW	3KW	5KW
Wind turbine rated voltage	AC220V-240V	AC220V-240V	AC220V-380V	AC380-450V
3-phase dump load voltage	450±5Vdc		750±5Vdc
PWM constant voltage	≥400Vdc		≥700Vdc
Environment temperature	-30°C to 60°C
Degree of protection	IP20 (Indoor) / IP65 (Outdoors)

System Functions

Primary Functions:

Rectifier, Control, DC Output

Automatic Protection:

Over voltage protection, Grid cut off protection, Regulated supply output, Arrester

Manual Controls:

Manual brake, Reset, Emergency switch

Display Parameters:

Generator speed, Input/output voltages/currents, Power generation statistics, Power Curve setting

Applications

Designed for grid-connected systems including wind power generation, hydroelectric power generation, and solar power generation applications.

Greef provides custom system solutions - contact us for specific requirements

Customization Options

Brand:

Greef

Model Series:

GT-PCTC

Certification:

MPPT Efficiency:

99.9%

Output Frequency:

50Hz/60Hz

Cooling Method:

Natural Convection

Packaging & Shipping

Each controller is securely packaged in foam-lined plywood cases for maximum protection during transit. Orders ship within 1-2 business days with tracking provided.
