Name: LCD Touch Screen On Grid Controller with 95% Maximum Efficiency and 100-1000 KW Power Range for Energy Management
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AC PCS
Price: 1,730.00 USD
Availability: InStock

Evde > Ürünler > Şebeke Kontrolöründe >

LCD Touch Screen On Grid Controller with 95% Maximum Efficiency and 100-1000 KW Power Range for Energy Management

LCD Touch Screen On Grid Controller

95% Maximum Efficiency Energy Management Controller

100-1000 KW Power Range Grid Tied Controller

Marka adı:

Greef

Sertifika:

Model Number:

AC PCS

Bizimle İletişim

Bir İndirim İste

LCD Touch Screen On Grid Controller with 95% Maximum Efficiency and 100-1000 KW Power Range for Energy Management

Ürün Ayrıntıları

Çıkış voltajı:

400/450VAC

İçeriği Görüntüle:

Jeneratör Hızı(rpm),Giriş Gerilimi (Vdc), Giriş Akımı(Vac),Çıkış Gücü(kW), Şebeke Gerilimi (Vac),Şeb

Koruma Seviyesi:

IP54

Ekran Modu:

LCD Dokunmatik Ekran

Çıkış Frekansı:

50 Hz / 60 Hz

Maksimum verimlilik(%):

%95

Güç:

100/150/200/250/300/400/500/600/700/800/1000KW

Çalışma sıcaklığı aralığı:

-20°C ila 60°C

Ödeme ve Gönderim Koşulları

Minimum Order Quantity

1Set

Fiyat

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Ödeme koşulları

T/T, Western Union, MoneyGram, L/C

Supply Ability

İLGİLİ ÜRÜNLER

WIFI Communication Mode On Grid Controller with 400-450 VAC Output Voltage and Intelligent Air Cooling for Efficient Energy Management

En İyi Fiyatı Alın

On Grid Controller with 300-460V Permissible Grid Voltage Range, Ethernet Communication Mode, and 400-450VAC Output Voltage for Efficient Energy Conversion

En İyi Fiyatı Alın

On Grid Controller with 240-550 V DC Input Voltage Range Touch Screen Display for -20°C To 60°C Operation

En İyi Fiyatı Alın

100 KW to 1000 KW AC-to-DC Output On Grid Controller with 50 Hz 60 Hz Frequency for Stable Power Conversion

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

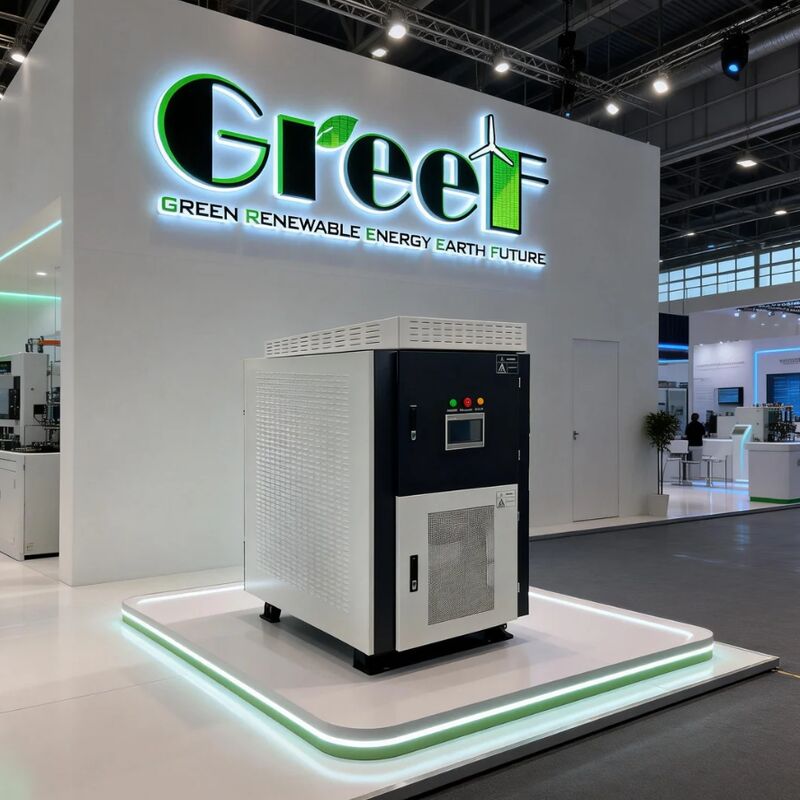

Advanced Hydro Grid-tied Converter

The GREEF ENERGY Hydro Grid-tied Converter integrates multiple essential functions into a single device, including AC-to-DC rectification for Permanent Magnet generators and DC-to-AC inversion. Featuring an intelligent energy management system and configurable dual LCD touchscreen, this converter provides real-time power regulation and precise control over voltage and frequency for Permanent Magnet Synchronous Generators (PMSGs).

The latest system version incorporates smart water gate control with multiple sensors for monitoring water level, flow, and pressure, ensuring secure and stable operation under varying conditions. For grid connectivity, the converter supports direct grid-tied operation, enabling both grid charging and energy feedback to enhance overall hydro power system efficiency.

Smart Energy Management System Features

EMS Smart Energy Management System with multiple configurable operating modes (off-grid, grid-tied, grid charging)
Double LCD smart touch screen display for intuitive monitoring and control
Generator power curve tracking technology for enhanced performance
AC/DC dual backup auxiliary power supply for continuous operation
Advanced control technology for managing unbalanced loads
RS-485 Modbus RTU protocol communication for seamless integration
Optional PWM dump load protection against over-voltage and over-speed
Water gate motor control functionality
Optional WiFi and LAN remote monitoring and control applications
Customizable sensor control functions
Static Transfer Switch (STS) capability for grid-tied and off-grid applications

Technical Specifications

Parameter	Specification
Degree Of Protection	IP54
Power Range	100/150/200/250/300/400/500/600/700/800/1000 KW
Output Frequency	50 Hz / 60 Hz
Maximum Efficiency	95%
Communication Modes	Ethernet, RS485, WIFI
Display Contents	Generator Speed (rpm), Input Voltage (Vdc), Input Current (Vac), Output Power (kW), Grid Voltage (Vac), Grid Current (A), Power Generate Today (kWh), Power Generate This Month, Power Generate Last Month, Power Generate This Year, Power Generate Last Year, Power Curve Setting
Input Voltage Range	240-550 V DC
Output Voltage	400/450 VAC
Display Mode	LCD Touch Screen

Applications

The Greef AC PCS On Grid Controller is designed for efficient energy management in solar power plants, microgrids, and distributed energy resources. With CE certification and 95% maximum efficiency, it supports global power standards (50 Hz / 60 Hz) and features DC DC Switching Controllers for enhanced voltage regulation and energy stability.

The intuitive LCD touch screen display and comprehensive communication capabilities (Ethernet, RS485, WIFI) enable seamless remote monitoring and control for both residential and commercial energy systems.

Customization & Ordering

Greef offers customized AC PCS On Grid Controller solutions with PWM unloading + three-phase unloading systems. The controller includes wind turbine speed and wind speed monitoring, intelligent air cooling, and operates within a temperature range of -20°C to 60°C with IP54 protection.

Packaging: Foam and plywood cases for safe delivery
Minimum Order: 1 set
Delivery Time: Approximately 25 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Pricing: Negotiable based on order specifications
