Low Start Torque Aluminum Alloy Shell Coreless Permanent Magnet Generator with Customized Rotate Speed

Low Start Torque Aluminum Alloy Shell Coreless Permanent Magnet Generator with Customized Rotate Speed

Marka adı:

Greef

Sertifika:

CE

Model Number:

GDG

Bizimle İletişim
Bir İndirim İste
Low Start Torque Aluminum Alloy Shell Coreless Permanent Magnet Generator with Customized Rotate Speed
Low Start Torque Aluminum Alloy Shell Coreless Permanent Magnet Generator with Customized Rotate Speed
Ürün Ayrıntıları
Yapı:
Dış/İç Rotor
Dönüştürme yöntemi:
e
Jeneratör kabuk malzemesi:
Alüminyum Alaşım
Nominal Gerilim:
Özelleştirilmiş
Döndürme Hızı:
Özelleştirilmiş
Faz Tipi:
3 Faz
Bakım:
Bakım gerektirmez
Ödeme ve Gönderim Koşulları
Minimum Order Quantity
1Set
Fiyat
Pazarlık edilebilir
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
Ödeme koşulları
T/T, Western Union, MoneyGram, L/C
Supply Ability
Supply Ability
İLGİLİ ÜRÜNLER
İyi bir fiyat. Coreless Permanent Magnet Generator with Low Start Torque Maintenance-Free Design for 50/60HZ Frequency çevrimiçi video

Coreless Permanent Magnet Generator with Low Start Torque Maintenance-Free Design for 50/60HZ Frequency

En İyi Fiyatı Alın
İyi bir fiyat. Maintenance-free Coreless Permanent Magnet Generator with Low Start Torque and High Efficiency for Wind Power çevrimiçi video

Maintenance-free Coreless Permanent Magnet Generator with Low Start Torque and High Efficiency for Wind Power

En İyi Fiyatı Alın
İyi bir fiyat. 3 Phase Coreless Permanent Magnet Generator with Low Start Torque High Efficiency and Gearless Direct Drive for Industrial Applications çevrimiçi video

3 Phase Coreless Permanent Magnet Generator with Low Start Torque High Efficiency and Gearless Direct Drive for Industrial Applications

En İyi Fiyatı Alın
İyi bir fiyat. Coreless Permanent Magnet Generator with Low Start Torque High Efficiency and Maintenance-free Design for Wind Power çevrimiçi video

Coreless Permanent Magnet Generator with Low Start Torque High Efficiency and Maintenance-free Design for Wind Power

En İyi Fiyatı Alın
Bizimle İletişim
Şimdi iletişime geçin
Ürün Tanımı
GDG series disc-type permanent magnet generator overview Generator internal structure and components Generator installation and application
GDG Series Disc-Type Permanent Magnet Generator
Product Overview

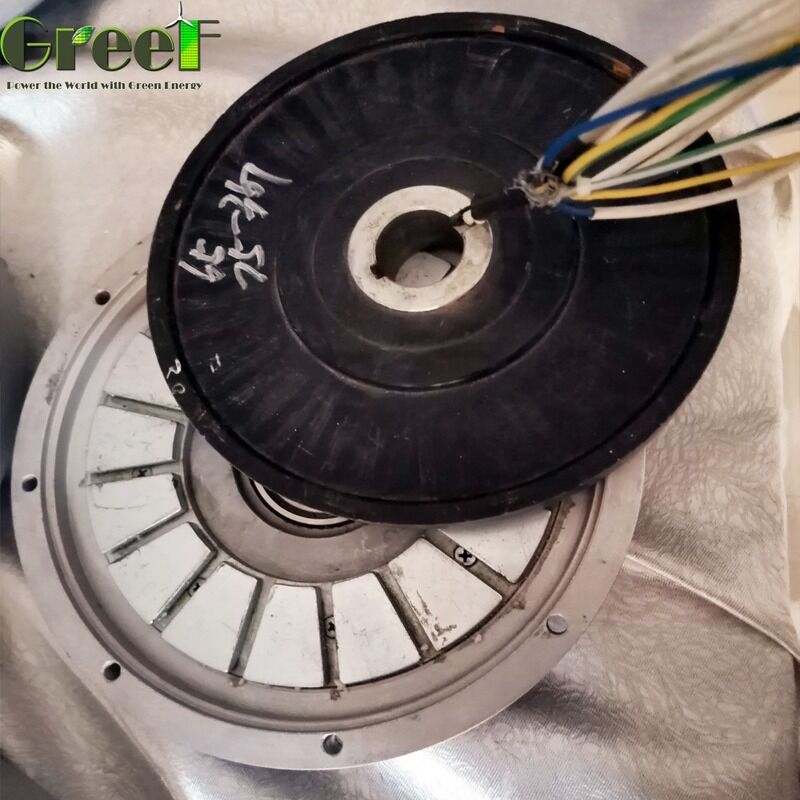

The GREEF New Energy GDG series disc-type permanent magnet generator features an innovative iron-core-free design. This unique generator employs a spindle and rotor arranged in a disc configuration, with the stator fixed at the center and the rotor rotating on both sides. The spindle contains only windings without an iron core, significantly enhancing generator performance.
Both stator and rotor utilize a flat disc structure with axial air gap magnetic flux, positioned alternately along the axial direction for a compact form factor. The disc generator combines a short axial length with a large diameter, making it ideal for multi-pole configurations.
The GDG series offers exceptional power-to-mass ratio, low-speed operation, and efficient startup even at low wind speeds. Its compact, lightweight design results in low energy consumption and streamlined structure. High efficiency and minimal wind resistance make it perfect for direct-drive vertical axis wind turbines.
Available in two configurations: outer rotor (stationary casing with center cable routing) and inner rotor (rotating shaft with external cable exit).
Key Features
  • Low Start Torque Technology: Minimal startup resistance with starting torque less than 0.1 N*m
  • High Efficiency: Core-free design reduces mechanical resistance and energy loss
  • Advanced Magnet Technology: Rare earth permanent magnets with multiple poles and small air gap
  • Gearless Direct Drive: Brushless design eliminates maintenance requirements
  • Enhanced Reliability: Up to 8x longer lifespan than traditional generators
  • Optimized for Low Wind Speed: Higher utilization in low wind environments
  • Excellent Heat Dissipation: Aluminum alloy frame with specialized internal structure
Applications
  • Wind Power Generation: Ideal for megawatt-class wind turbines with enhanced output density
  • Renewable Energy: Solar and wind power generation systems
  • Industrial Applications: Backup and auxiliary power for critical equipment
  • Customized Solutions: Tailored power, speed, and voltage parameters
Customization Options
The Greef GDG Coreless Permanent Magnet Generator offers comprehensive customization services manufactured in Qingdao with CE certification. Minimum order quantity: 1 set with negotiable pricing.
Specifications:
• Shell Material: Aluminum Alloy
• Shaft: Steel
• Rated Power: 0.05kW to 100kW
• Phase: 3-phase
• Delivery: 25 working days
• Payment: T/T, Western Union, MoneyGram, L/C
Packaging & Shipping
Packaging: Each unit is securely wrapped with anti-static and shock-absorbing materials, placed in custom foam inserts within double-walled cardboard boxes with protective corner guards and moisture-resistant liners.
Shipping: Worldwide shipping via trusted couriers with tracking and insurance. Standard delivery: 5-15 business days. Expedited options available. Compliant with international shipping regulations.
Puanlar ve İncelemeler

Genel Puan

5.0
Bu tedarikçi için 50 incelemeye dayanarak.

Sıralama Fotoğrafı

Aşağıdaki, tüm derecelendirmelerin dağılımıdır.
5 yıldızlar
100%
4 yıldızlar
0%
3 yıldızlar
0%
2 yıldızlar
0%
1 yıldızlar
0%

Tüm Yorumlar

L
L*s
Czech Republic May 4.2023
Yardımsever (4)
“I built a small pico hydro system on the creek behind my off-grid cabin. The water head is only 3 meters and flow rate around 0.2 m³/s – too low for most generators. This axial flux coreless unit starts generating usable power at just 150 RPM. No cogging, no iron loss, and it’s silent. I’m getting 300-400W continuously, 24/7. My old induction generator would barely light an LED at that speed. Absolutely perfect for low-head hydro.”
